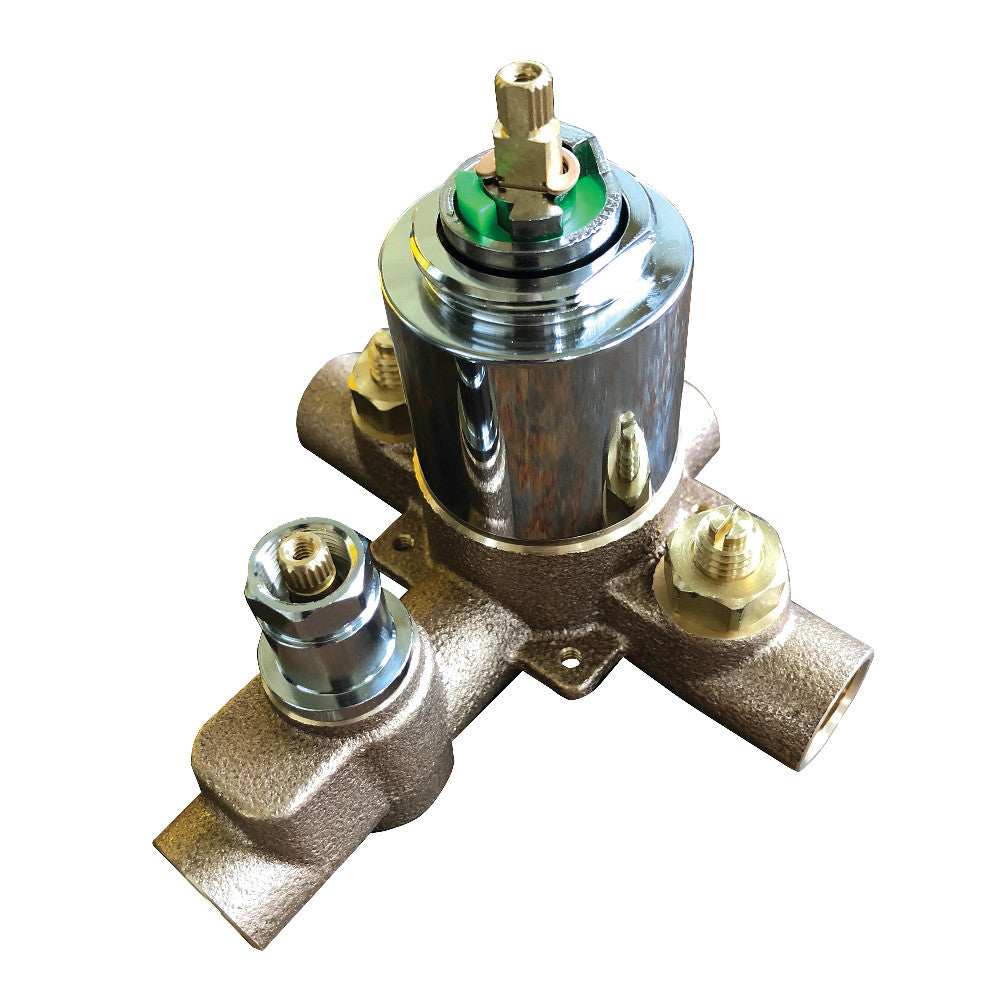

KB86910V

Valve for KB86910DL

Notify me when this product is available:

With a Kingston Brass rough-in valve, your tub spout and showerhead can operate to their full potential, providing you with a comfortable shower experience. In the case of leaks or maintenance, this valve features shut-off stops, which will allow you to stop the flow of water to the connecting shower with the turn of a screwdriver. As an added benefit, this valve is pressure balanced to prevent spikes in water temperature.

Features:

  • Solid Brass Construction
  • Duraseal Washerless Cartridge
  • Pressure Balanced Valve for Safety and Prevention of Spikes in Water Temperature
  • Standard 1/2" IPS Connection
  • 5" Length
  • 4" Width
  • 5-3/8" Height

Specifications:

Theme Modern
Material Brass
Faucet Centers N/A
Mounting Type Wall Mount
Max Deck Thickness N/A
Drain Included No
Pullout Spray No
Sidespray No
Showerhead Included No
Handshower Included No
Country of Origin Taiwan
Warranty 10 Years
Product Dimensions (LxWxH) 5.38 x 5 x 4 Inch
Item Weight (lbs) 7
Packaged Dimensions (LxWxH) 8.23 x 7.76 x 6.93 Inch
Packaged Product Weight (lbs) 7.22
CUPC Certified Yes
ADA Yes

Download Explosion Chart

Download Measurement Chart

Download Installation Chart

Measurement Charts

Exploded Parts Diagram
